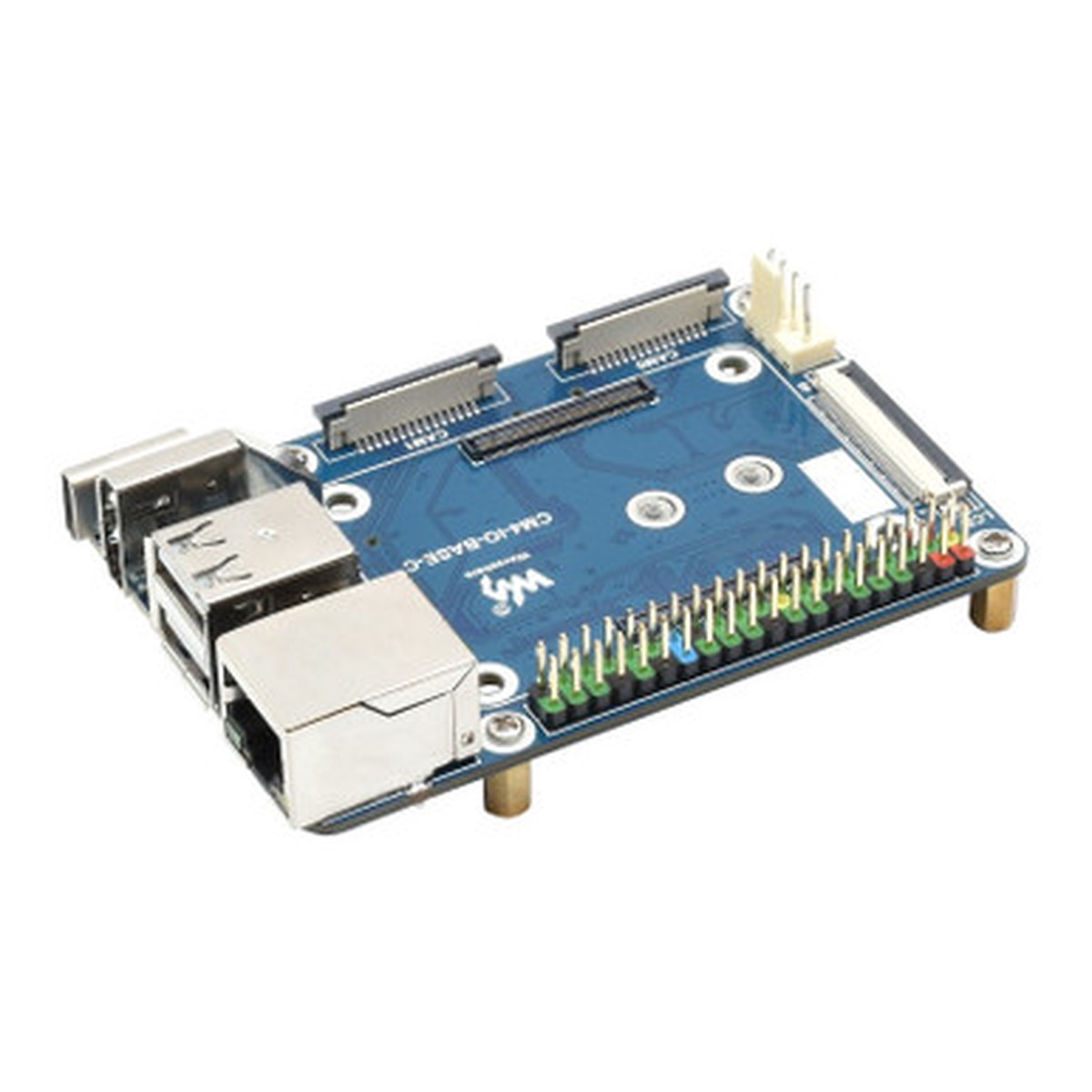

Mini Base Board (C) Designed for Raspberry Pi Compute Module 4

Description

Description Show Reviews Waveshare 23228 – Mini Base Board (C) Designed For Raspberry Pi Compute Module 4 – CM4-IO-BASE-C Features Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products Dedicated 40PIN LCD Connector, Powerful Functions In Mini Body One Connection For Display And Touch, Support 70H-1024600-IPS-A Series Display Easier And Faster To Be Integrated Into Applications Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header Suitable For Compute Module 4 Lite/EMMC Series Module Specifications CM4 socket suitable for all variants of Compute Module 4 Networking Gigabit Ethernet RJ45 connector Connector M.2 M KEY, supports communication modules or NVME Solid State Drives Raspberry Pi 40PIN GPIO header USB USB 2.0 Type A 2 Display LCD port (40pin 0.5mm FPC connector) Camera MIPI CSI-2 camera port 2 (15pin 1.0mm FPC connector) Video HDMI port, supports 4K 30fps output RTC Real-time clock with battery socket and ability to wake Compute Module 4 Storage TF card socket for Compute Module 4 Lite (without eMMC) variants Fan header allows speed adjustment, 5V Power input 5V Dimensions 85 56mm Includes CM4-IO-BASE-C x1 Solid State Drives mounting screw x1 Weight: 0.051 kg Compact, Yet Complete What’s On Board CM4 socket suitable for all variants of Compute Module 4 Power input/Programming 5V/2.5A power supply, or used for eMMC burning LCD Port 40PIN LCD display port, for direct connection to 70H-1024600 series display FAN for connecting cooling fan, allows speed adjustment via IO ports CAM 2x MIPI CSI camera ports HDMI0 connector HDMI0 port, supports 4K 30fps output USB 2.0 ports 2x USB 2.0 ports, for connecting sorts of USB devices Gigabit Ethernet connector Gigabit Ethernet RJ45 connector, with 10 / 100 / 1000M network support M.2 indicator indicating the operating status of M.2 interface PWR indicator indicating the status of Raspberry Pi power supply ACT indicator indicating the operating status of Raspberry Pi Boot switch ON: CM4 would be booted from USB-C interface OFF:CM4 would be booted from eMMC or TF card 40PIN GPIO header for connecting sorts of HAT TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY) FE1.1S USB HUB chip, support expanding USB port M.2 slot supports sorts of NVME Solid State Drives, or communication modules with PCIE M.2 KEY-M interface RTC chip allows RTC-related functions like wakeup, shutdown, reboot, and more RTC interrupt selection GN-EN: CM4 shutdown(by default) on RTC interruption PI-RUN: CM4 reboot on RTC interruption D4: D4 pin is triggered on RTC interruption RTC battery holder supports CR1220 button cell Outline Dimensions Resources WIKI: www.waveshare.com/wiki/CM4-IO-BASE-C * Resources for different product may vary, please check the wiki page to confirm the actually provided resources. 0 Reviews Hide Reviews Show Reviews
